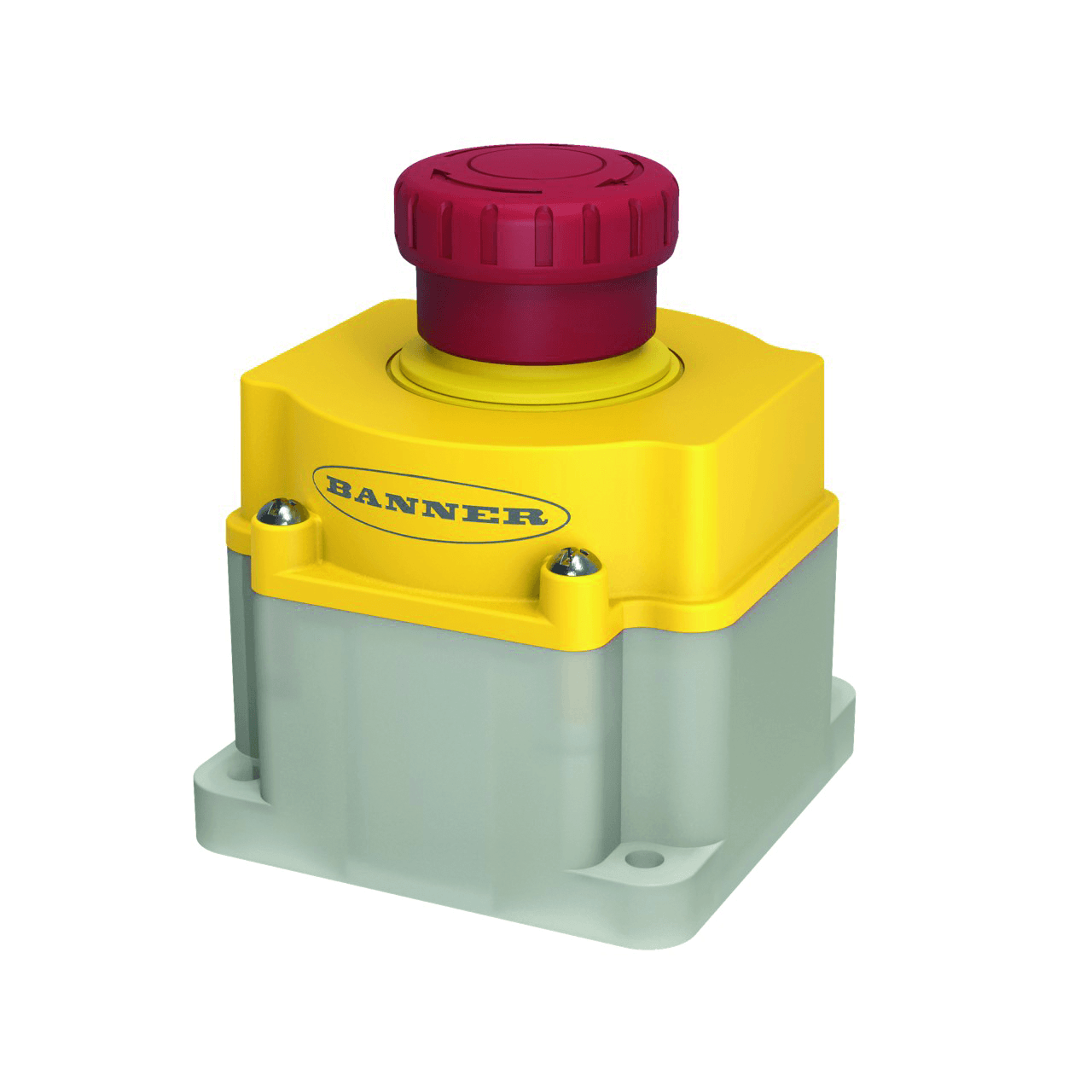

Emergency Shutdown E-stop Button
SSA-EB1MP-02ED1Q5B
Order ID no. 3025075
In Stock
Price Group
F3
List Price
€ 271,70
Item Total
€ 271,70
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Machine Safety
Emergency Stop Controls
SSA-EB1MP-02ED1Q5B
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-25
Cascadable
Yes
Connector type
M12 x 1
Design
Rectangular

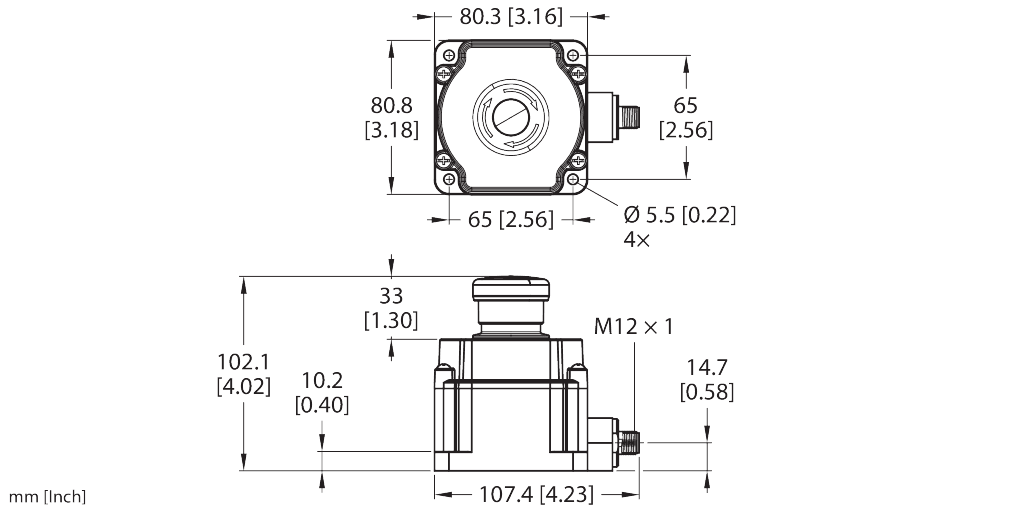

Dimensions (L x W x H)
80,3 mm x 80,8 mm
Electrical connection
Connector
Function
E-stop button, unlit
Housing material
Plastic
Housing quality
PC
Light type
Yellow
Operating voltage
AC/DC
Output function
Potential-free
Protection class
IP65
Special features
Lockable
Switching element function
2 x NC contact
Key Features
Light type
Yellow
Protection class
IP65
Switching element function
2 x NC contact
