TL50BLRYGAQP | TURCK - Your Global Automation Partner
LED Signal Light
TL50BLRYGAQP
Order ID no. 3025532
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
662488255329
Gross weight
234
Height
70
Length
100
Net weight
234
Dimension unit
MMT
Weight unit
GRM
Volume
1.33
Volume unit
DMQ
Width
190
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-20
Acoustic signal
Continuous tone
Cable length (m)
0.15
Cascadable
No
Electrical connection
Cable with connector
Connector type
M12 x 1

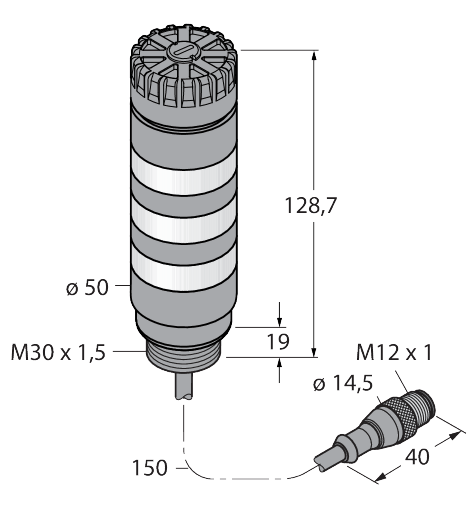

Design
Smooth barrel
Construction size
⌀ 50 mm
Dimensions
147,7 mm
Dimmable
No
Housing material
Plastic
Housing quality
ABS
Housing surface
Black
Input type
Bipolar (PNP/NPN)
Light type
Red, Yellow, Green
Volume (dB)
92 dB
Number of colors/segments
3
Function
Tower light
Protection class
IP50
Key Features
Acoustic signal
Continuous tone
Dimmable
No
Light type
Red, Yellow, Green
Number of colors/segments
3
In Stock
Price Group
F3
List Price
€360.40
