excom I/O System PROFIBUS-DP – Segment Coupler

SC12EX

Order ID no. 6884047

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -20
Approvals: ATEX, BV, CCC, CE, cFM, cFMus, DNV GL, EAC Ex, INMETRO, KCC, KOSHA, KR, LR
Connection technology signal: D-Sub
Device type: Coupler

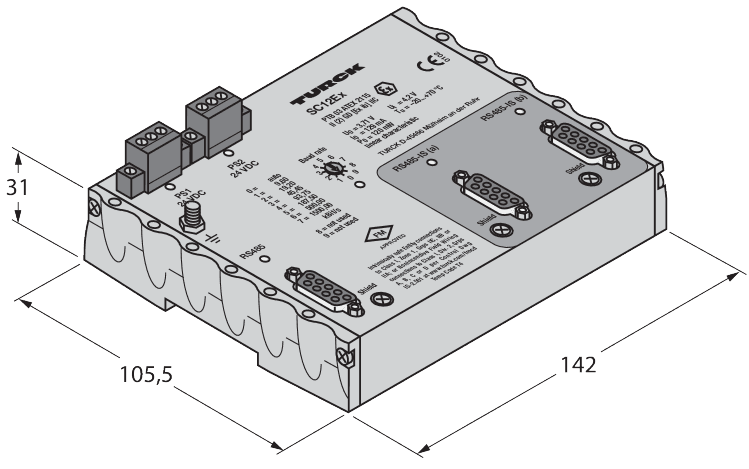

Dimensions (L x W x H): 105,5 mm x 142 mm x 31 mm
Housing material: Anodized aluminium
Network protocol: PROFIBUS-DP
Number of channels: 2
Protection class: IP20
