Ultrasonic Sensor

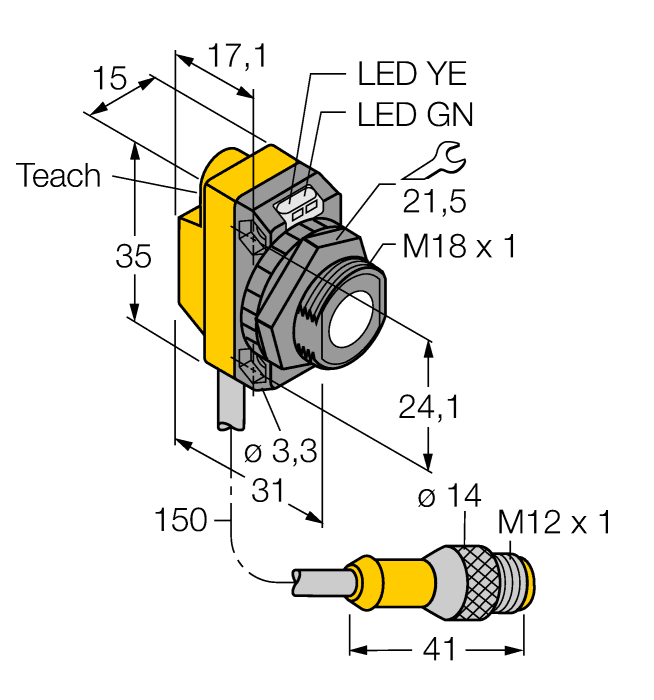

QS18UNAQPMA
Order ID no. 3073170
In Stock
Price Group
F3
List Price
€270.60
Item Total
€270.60
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Ultrasonic Sensors
QS18UNAQPMA
Technical Data
Function
Proximity switch
Switching element function
NO contact
Output function
NPN
Electrical connection
Cable with connector
Connector type
M12 × 1
Cable length (m)
0.15
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Protection class
IP67
Design
Rectangular with thread
Max. range (mm)
500
Construction size
33.5 x 15 x 35 mm
Key Features
Electrical connection
Cable with connector
Output function
NPN
Max. range (mm)
500
