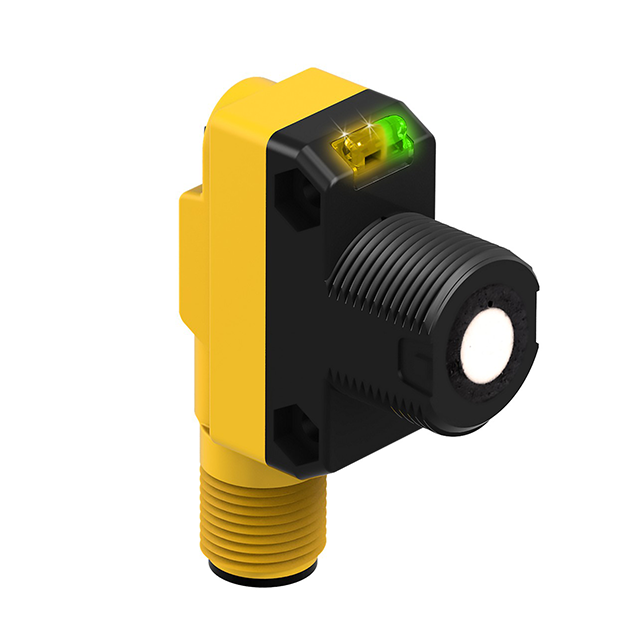

Ultrasonic Sensor
QS18UPAQ8
Order ID no. 3073156
In Stock
Price Group
F3
List Price
€228.80
Item Total
€228.80
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Ultrasonic Sensors
QS18UPAQ8
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Rectangular with thread
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Max. range (mm)
500
Function
Proximity switch
Construction size

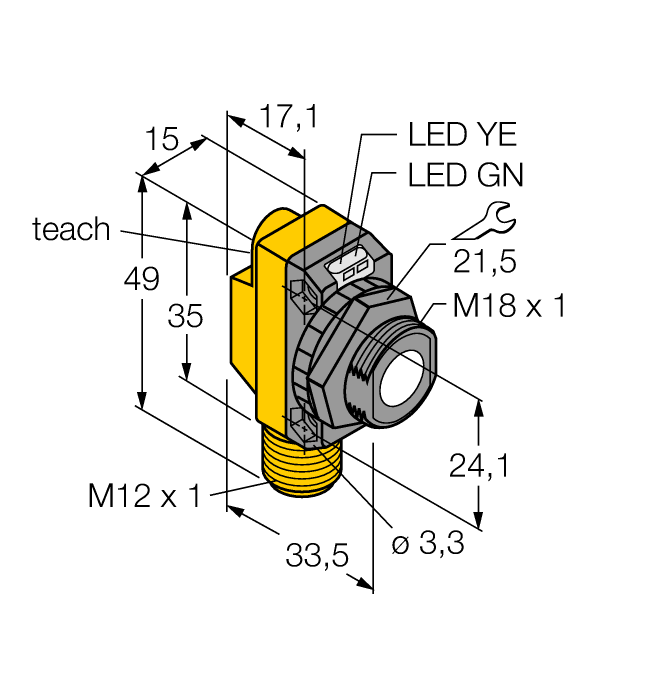

33.5 x 15 x 35 mm
Key Features
Electrical connection
Connector
Output function
PNP
Max. range (mm)
500
