Ultrasonic Sensor

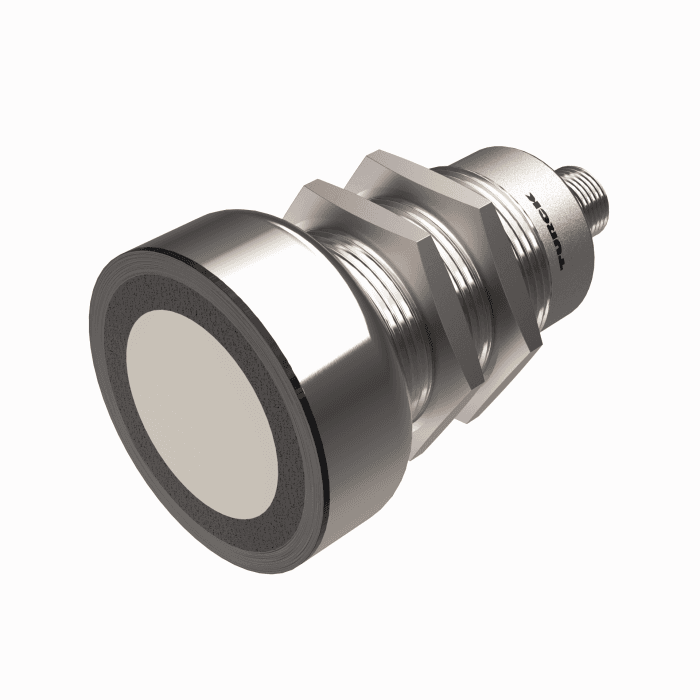

RU600D-M30M-LIU8X2-H1141
Order ID no. 100039015| In Stock | |
| Price Group | D2 |
| List Price | €490.00 |
Item Total€490.00
Quantity
- Detection type
- contactless
- Design
- Threaded barrel
- Communication protocol
- IO-Link
- Protection class
- IP67
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- CuZn
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Max. range (mm)
- 6000
- Output function
- PNP/NPN, analog output
- Medium
- liquids, Bulk goods
- Measuring principle
- Ultrasonic
- Switching element function
- NO/NC
- Function
- Proximity switch
- Construction size
- M30 x 1.5
Key Features
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Output function
- PNP/NPN, analog output
- Max. range (mm)
- 6000
