PT7500PSIG-2105-U6-MP11 | TURCK - Your Global Automation Partner

Pressure Transmitter

PT7500PSIG-2105-U6-MP11

Order ID no. 100048448

homeHome
Loading...

Protection class: IP67
Output function: ratiom. 10…90%
Design: Without display

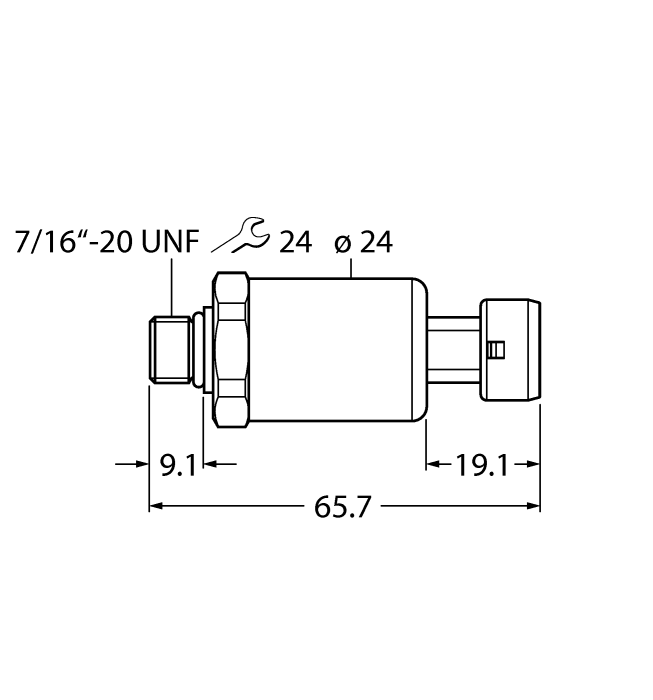

Process connection: 7/16″-20 UNF male thread
Electrical connection: Connector
Connector type: Metri Pack 150 P2S series
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Operating voltage: DC
Electrical output: Voltage output (3-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4404 (AISI 316L)
Pressure range: 0…517.11 bar

Key Features

Electrical output: Voltage output (3-wire)
Process connection: 7/16″-20 UNF male thread
Pressure range: 0…517.11 bar

homeTurck-Shop
Sensors
Pressure Sensors
PT7500PSIG-2105-U6-MP11

In Stock
List Price	€149.45

Item Total€149.45
