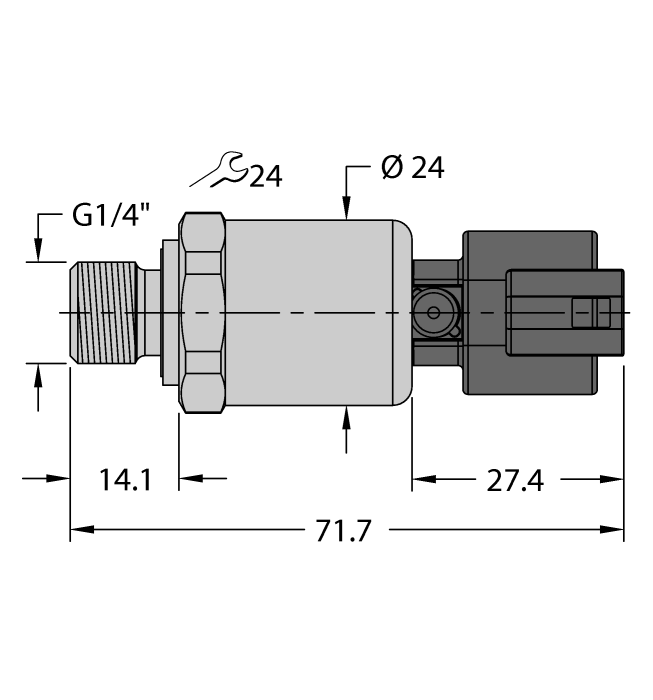

Pressure Transmitter

PT10R-1104-U6-DT043P

Order ID no. 100019014

Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Protection class: IP69K
Electrical connection: Connector
Connector type: Deutsch DT04-3P
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Approvals: cULus
Output function: ratiom. 10…90%
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Pressure transducer material: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: 0…10 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…10 bar
