Magnetic Field Sensor

BIM-UNTK-AP7X-0.3-PSG3M

Order ID no. 4686011

Cable length (m): 0.3
Design: Rectangular
Protection class: IP68
Electrical connection: Cable with connector
Connector type: M8 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Cable color: Gray
Output function: PNP
Switching element function: NO contact
Operating voltage: DC

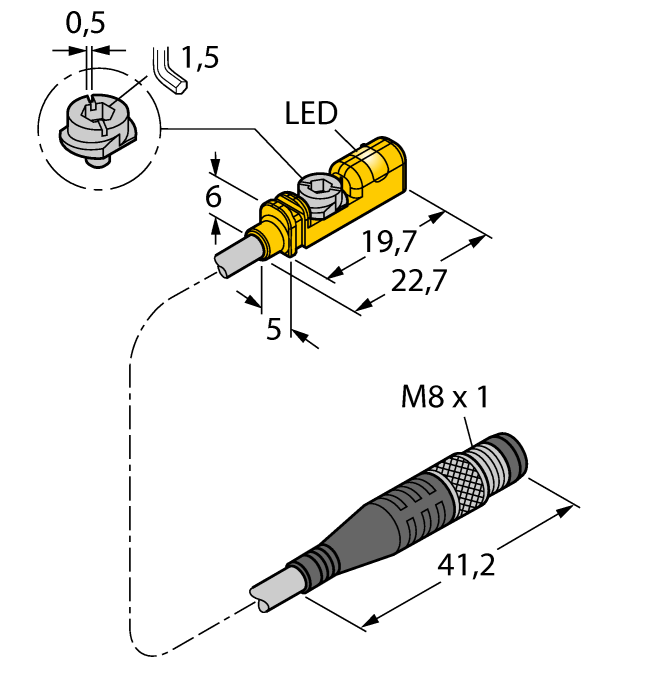

Construction size: 19.7 x 5 x 6 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
