Magnetic Field Sensor

BIM-UNT-AY1X-0.3-RS4.21/S1139

Order ID no. 4685765

Cable length (m): 0.3
Design: Rectangular
Protection class: IP68
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Cable color: Blue
Output function: NAMUR
Operating voltage: DC

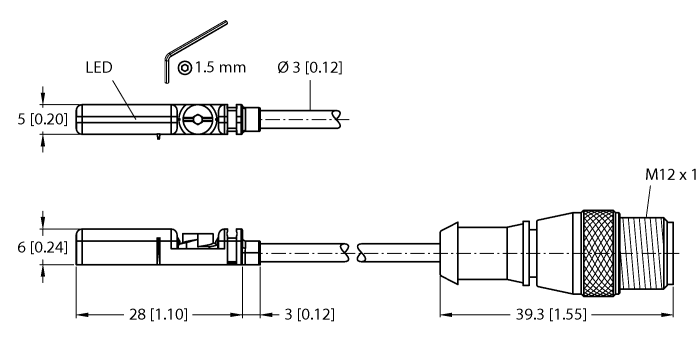

Construction size: 28 x 5 x 6 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: NAMUR
