Magnetic Field Sensor

BIM-NST-AP6X-H1141/S34

Order ID no. 4685401

Design: Rectangular
Protection class: IP67
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PA12-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Output function: PNP
Switching element function: NO contact
Operating voltage: DC

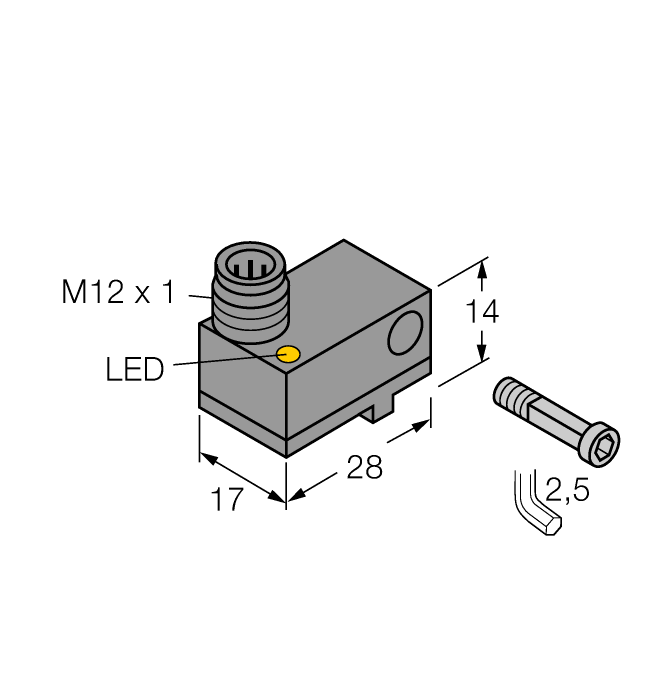

Construction size: 28 x 17 x 14 mm
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder

Electrical connection: Connector
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Output function: PNP
