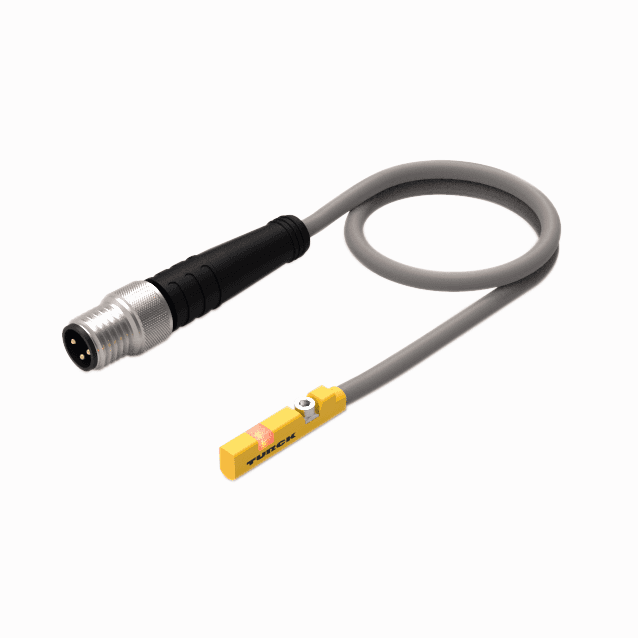

Magnetic Field Sensor
BIM-UNR-AN6X-0.3-PSG3M
Order ID no. 4586839
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
0.3
Cable color
Gray
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M8 × 1
Housing material
Plastic
Housing quality
PP
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Operating voltage
DC

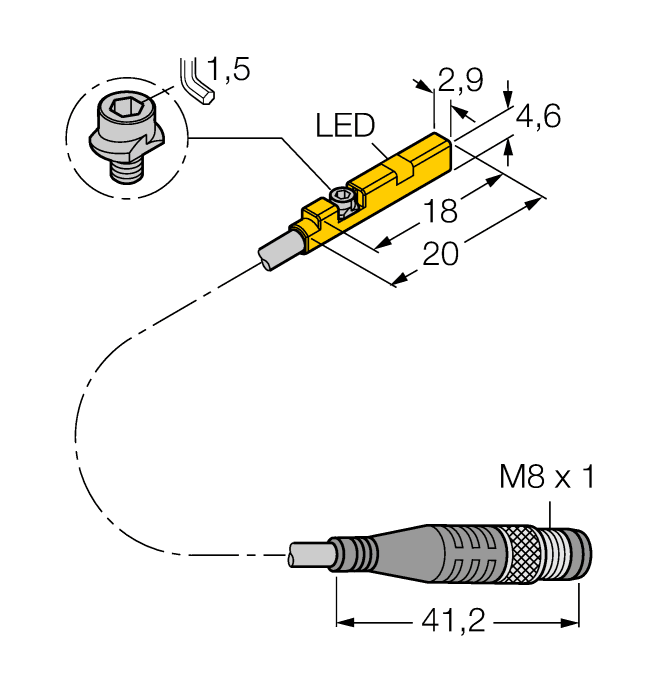

Construction size
18 x 2.9 x 4.6 mm
Cylindrical design
C-groove cylinder
Key Features
Electrical connection
Cable with connector
Cylindrical design
C-groove cylinder
Output function
NPN
home
Turck-Shop
Sensors
Magnetic Field Sensors
BIM-UNR-AN6X-0.3-PSG3M
In Stock
Price Group
E1
List Price
€77.20
Item Total
€77.20
