WIM45-UNTL-LIU5X2-0.3-RS4 | TURCK - Your Global Automation Partner
Linear Position Sensor
WIM45-UNTL-LIU5X2-0.3-RS4
Order ID no. 1536621
home
Home
Loading...
Technical Data
Cable length (m)
0.3
Protection class
IP67
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Output function
Analog output
Measuring principle
Magnetic
Operating voltage
DC

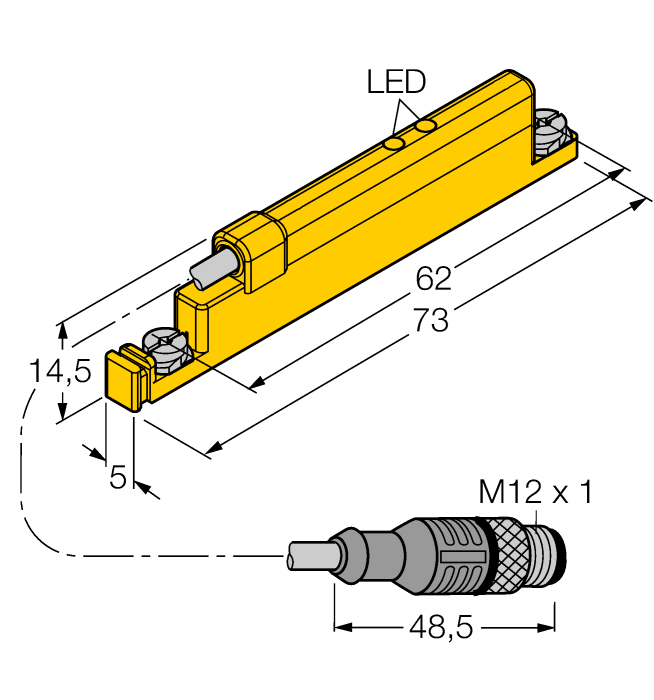

Construction size
73 x 5 x 14.5 mm
Measuring range
45…0.0 mm
Measuring range (mm)
45
Cylindrical design
T-groove cylinder
Key Features
Electrical connection
Cable with connector
Cylindrical design
T-groove cylinder
Output function
Analog output
In Stock
Price Group
E1
List Price
€308.00
