Magnetic Field Sensor
BIM-UNC-AP6X-0.3-RS4
Order ID no. 100001906| In Stock | |
| Price Group | E1 |
| List Price | €83.60 |
Item Total€83.60
Quantity
- Cable length (m)
- 0.3
- Design
- Rectangular
- Protection class
- IP67
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PP-GF20
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Cable color
- Gray
- Output function
- PNP
- Switching element function
- NO contact
- Operating voltage
- DC

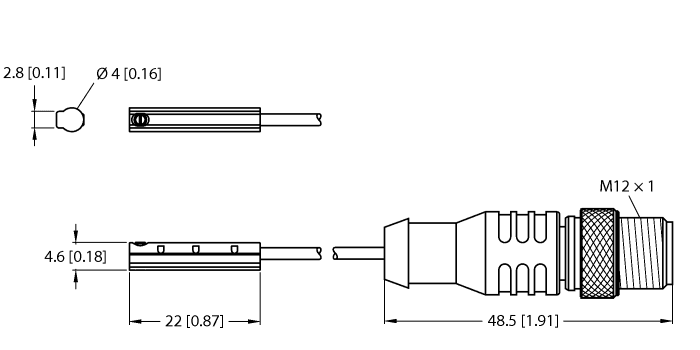

- Construction size
- 22 x 4 x 4.6 mm
- Cylindrical design
- C-groove cylinder
Key Features
- Electrical connection
- Cable with connector
- Cylindrical design
- C-groove cylinder
- Output function
- PNP
