LI25P1-QR14-LIU5X2-0.3-RS4 | TURCK - Your Global Automation Partner

LI25P1-QR14-LIU5X2-0.3-RS4

LI25P1-QR14-LIU5X2-0.3-RS4

Thumbnail for LI25P1-QR14-LIU5X2-0.3-RS4

Thumbnail for LI25P1-QR14-LIU5X2-0.3-RS4

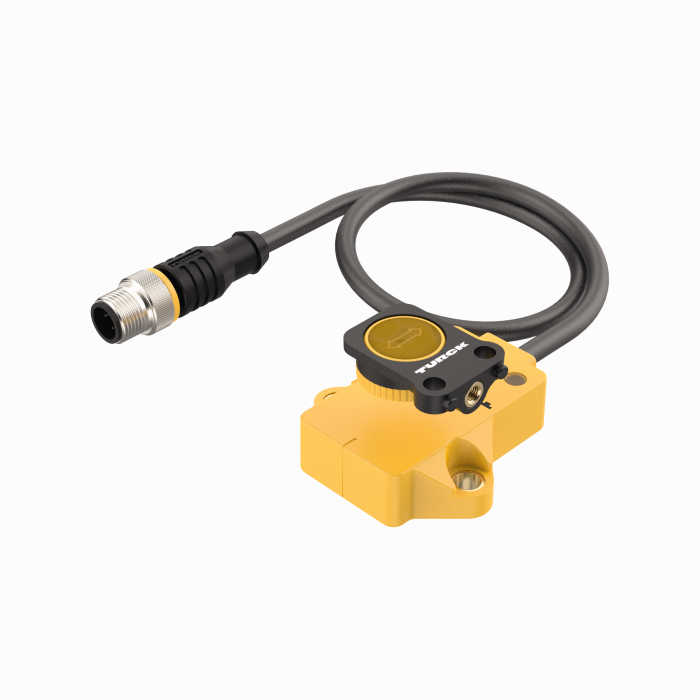

Inductive Linear Position Sensor

LI25P1-QR14-LIU5X2-0.3-RS4

Order ID no. 1590752

homeHome
Loading...

Cable length (m): 0.3
Design: Profile
Protection class: IP68, IP69K
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT-GF30-V0
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Cable color: Gray
Output function: Analog output
Measuring principle: Inductive
Operating voltage: DC
Measuring range: 25…0.0 mm
Measuring range (mm): 25

Key Features

Electrical connection: Cable with connector
Measuring range (mm): 25
Output function: Analog output

In Stock
Price Group	F1
List Price	€241.95

homeTurck-Shop
Sensors
Linear Position Sensors
LI25P1-QR14-LIU5X2-0.3-RS4

Item Total€241.95

Quantity

Contact Support
