RI360P1-DSU35-CNX4-2H1650 | TURCK - Your Global Automation Partner

Inductive Angle Sensor

RI360P1-DSU35-CNX4-2H1650

Order ID no. 1593011

homeHome
Loading...

Design: Dual sensor for rotary actuators
Communication protocol: CANopen
Protection class: IP68, IP69K
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Measuring principle: Inductive
Mounting conditions: Non-flush
Operating voltage: DC

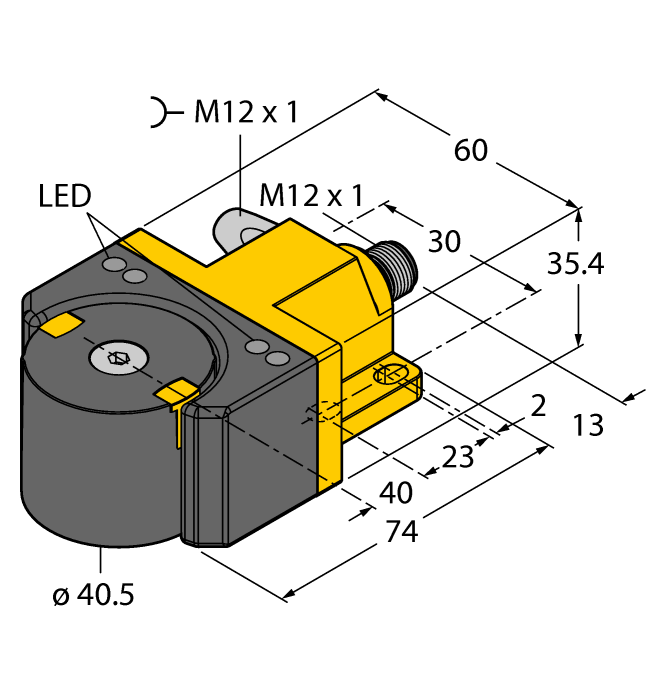

Construction size: 74 x 60 x 35.4 mm
Measuring range: 0…360°
Output type: Absolute singleturn
Flange type: Flange without mounting element

Key Features

Electrical connection: Connector
Measuring range: 0…360°
Mounting conditions: Non-flush
