Flow Monitoring

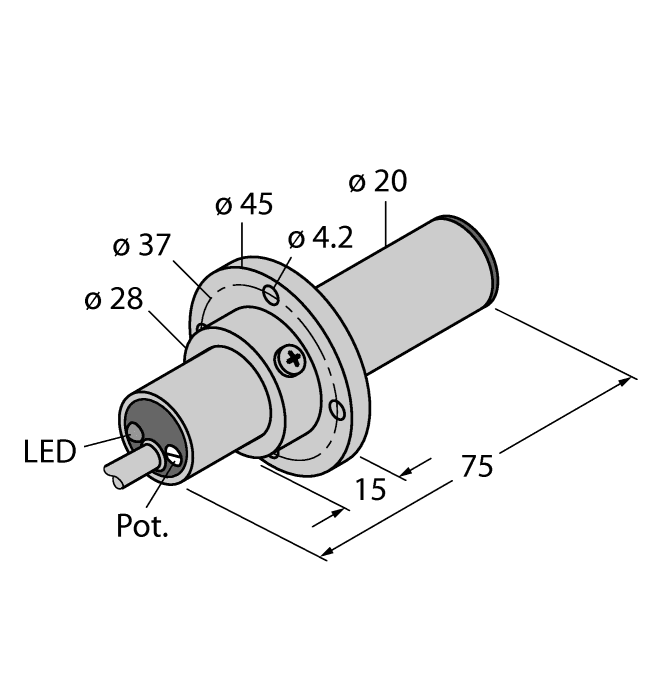

FCS-K20-AP8X
Order ID no. 6870702
In Stock
Price Group
D2
List Price
€133.65
Item Total
€133.65
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Flow Sensors/Flow Meters
FCS-K20-AP8X
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Approvals
cULus
Design
Immersion
Process connection
PVC flange (included in delivery)
Medium
gases
Detection type
Calorimetric
Electrical connection
Cable
Housing material
Plastic
Housing quality
PBT-GF30-V0
Media temperature min. (°C)
-20
Media temperature max. (°C)
70
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
60
Mounting conditions
Immersion sensor
Operating voltage
DC
Key Features
Process connection
PVC flange (included in delivery)
Output function
PNP
