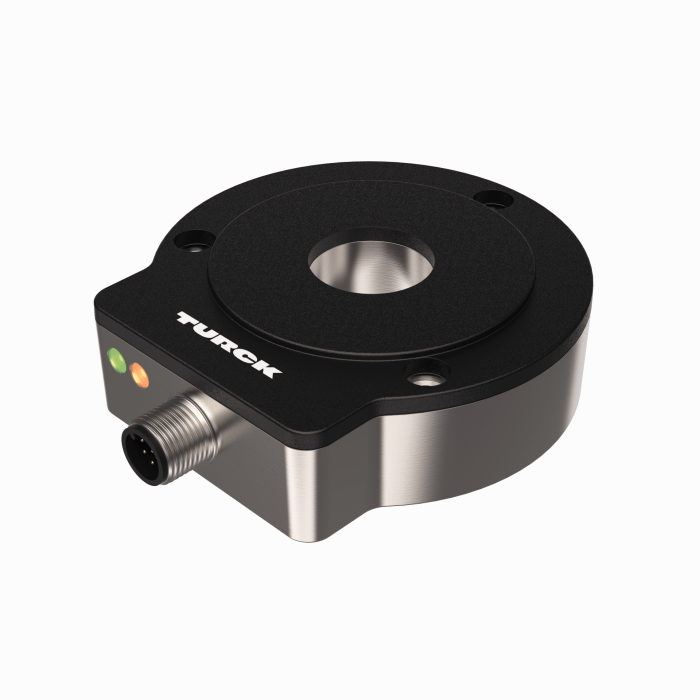

Contactless Encoder with Stainless Steel Housing
RI360P0-EQR24M0-INCRX2-H1181
Order ID no. 1590912
home
Home
Loading...
Technical Data
Protection class
IP68, IP69K
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
85
Output function
Push-Pull/HTL
Measuring principle
Inductive
Operating voltage
DC
Output type
Incremental
Flange type
Flange without mounting element
Resolution incremental (ppr)
1024
Shaft Type
Hollow shaft
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Key Features
Output type
Incremental
Shaft diameter D (mm)
6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20
Shaft Type
Hollow shaft
In Stock
Price Group
G1
List Price
€464.95
