RES-108B10E-9E19B-B3M12 | TURCK - Your Global Automation Partner

RES-108B10E-9E19B-B3M12

RES-108B10E-9E19B-B3M12

Thumbnail for RES-108B10E-9E19B-B3M12

Thumbnail for RES-108B10E-9E19B-B3M12

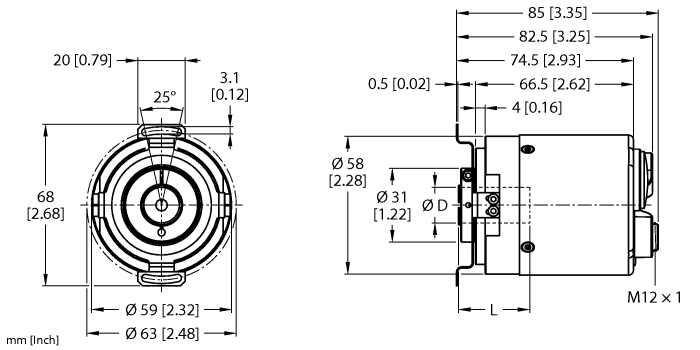

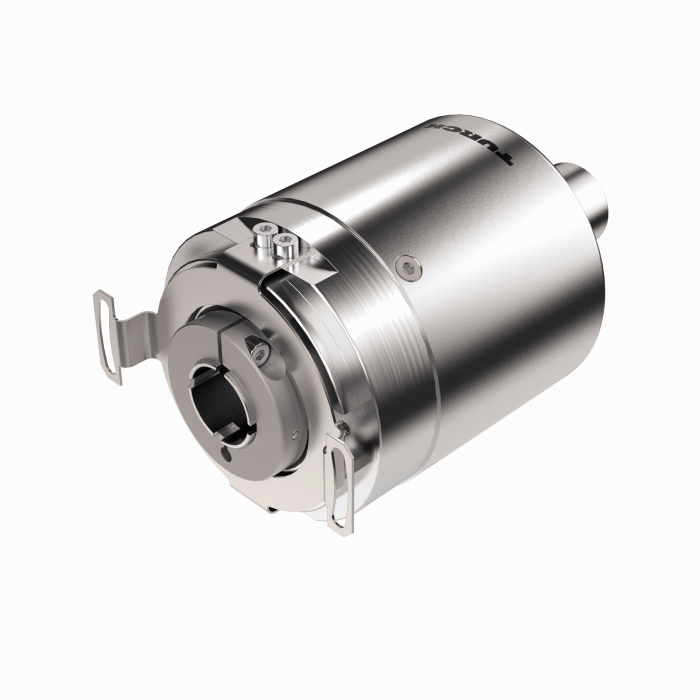

Absolute Rotary Encoder - Singleturn

RES-108B10E-9E19B-B3M12

Order ID no. 100046573

homeHome
Loading...

Protection class: IP67
Communication protocol: PROFINET
Electrical connection: Connector
Connector type: 3 x M12
Housing material: Aluminium
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Measuring principle: Optical
Output type: Absolute singleturn
Shaft Type: Blind hole shaft
Shaft diameter D (mm): 10
Flange diameter: 63
Flange type: Flange with stator coupling
Measuring range: 0…360°

Key Features

Output type: Absolute singleturn
Flange diameter: 63
Shaft diameter D (mm): 10
Shaft Type: Blind hole shaft

homeTurck-Shop
Sensors
Encoders
RES-108B10E-9E19B-B3M12

In Stock
List Price	€840.00

Item Total€840.00
