RES-107S6S-9E19B-B3M12 | TURCK - Your Global Automation Partner

RES-107S6S-9E19B-B3M12

RES-107S6S-9E19B-B3M12

Thumbnail for RES-107S6S-9E19B-B3M12

Thumbnail for RES-107S6S-9E19B-B3M12

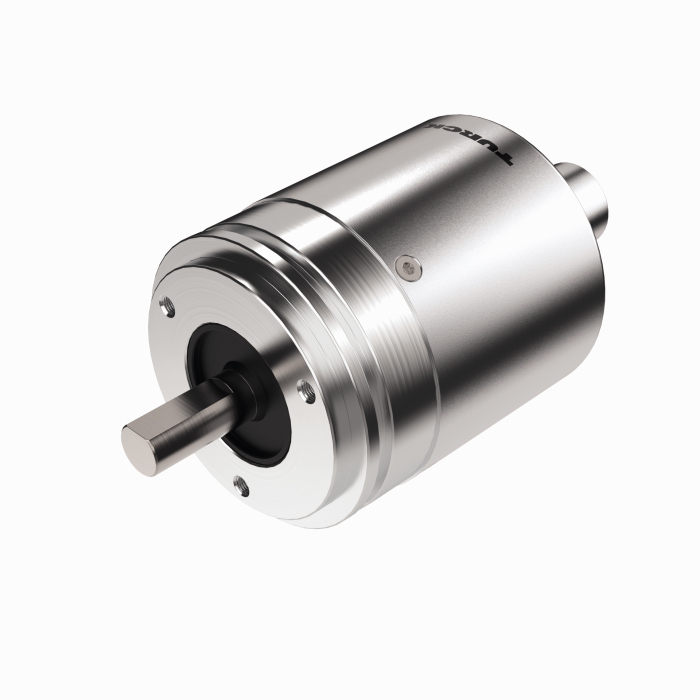

Absolute Rotary Encoder - Singleturn

RES-107S6S-9E19B-B3M12

Order ID no. 100046565

homeHome
Loading...

Protection class: IP67
Communication protocol: PROFINET
Electrical connection: Connector
Connector type: 3 x M12
Housing material: Aluminium
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Measuring principle: Optical
Output type: Absolute singleturn
Shaft Type: Solid shaft
Shaft diameter D (mm): 6
Flange diameter: 58
Flange type: Synchro flange
Measuring range: 0…360°

Key Features

Output type: Absolute singleturn
Flange diameter: 58
Shaft diameter D (mm): 6
Shaft Type: Solid shaft

homeTurck-Shop
Sensors
Encoders
RES-107S6S-9E19B-B3M12

In Stock
List Price	€761.60

Item Total€761.60

Quantity

Contact Support
