BC5-Q08-AP6X2-V1131/S250 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

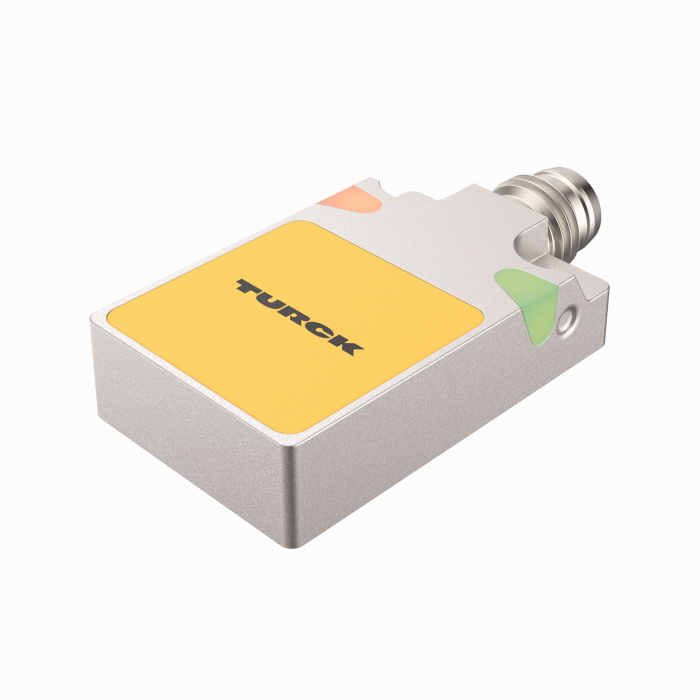

Capacitive Sensor
BC5-Q08-AP6X2-V1131/S250
Order ID no. 26210
home
Home
Loading...
Technical Data
Design
Rectangular
Protection class
IP68
Electrical connection
Connector
Connector type
Ø 8 mm
Housing material
Metal
Housing quality
Zamak
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Approvals
UL
Output function
PNP
Measuring principle
Capacitive
Switching element function
NO contact
Mounting conditions
Flush
Operating voltage
DC

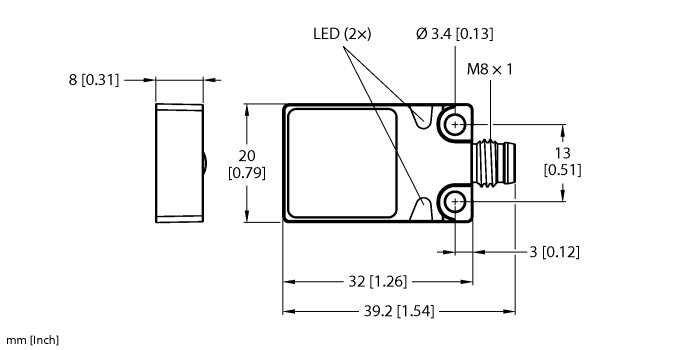

Construction size
32 x 20 x 8 mm
Rated switching distance (mm)
5
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
In Stock
Price Group
E1
List Price
€113.15
