BC20-K40WDTC-VP4X2/S930 | TURCK - Your Global Automation Partner

Capacitive Sensor

BC20-K40WDTC-VP4X2/S930

Order ID no. 2510105

homeHome
Loading...

Design: Smooth barrel
Protection class: IP69K
Electrical connection: Terminal chamber
Connector type: Removable cage clamp terminals
Housing material: Plastic
Housing quality: Grilamid LV-30H FWA
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Output function: PNP
Measuring principle: Capacitive
Switching element function: Complementary contact
Mounting conditions: Flush
Operating voltage: DC

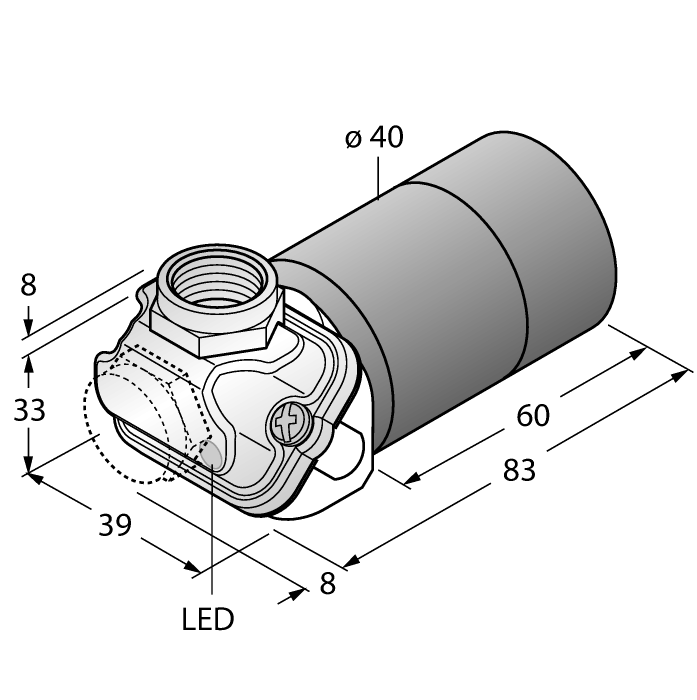

Construction size: Ø 40 mm
Rated switching distance (mm): 30

Key Features

Electrical connection: Terminal chamber
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 30

In Stock
Price Group	E1
List Price	€185.05
