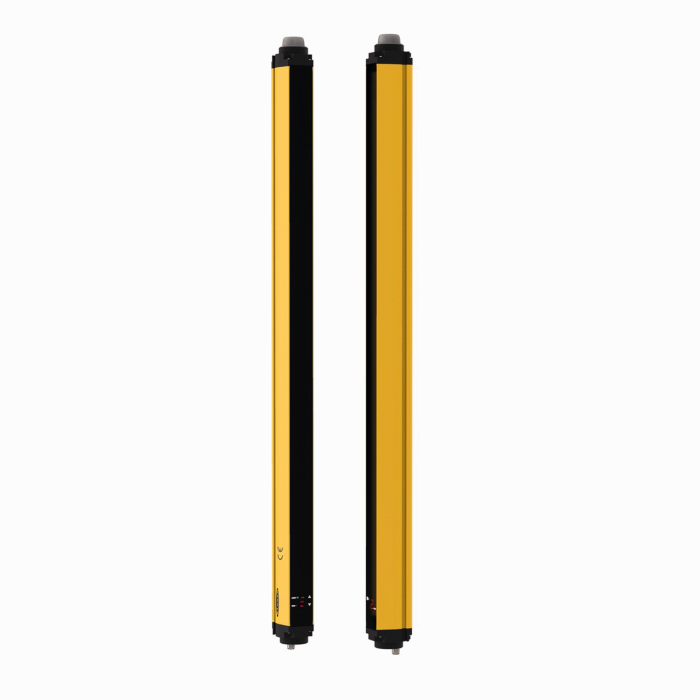

Safety Light Curtain

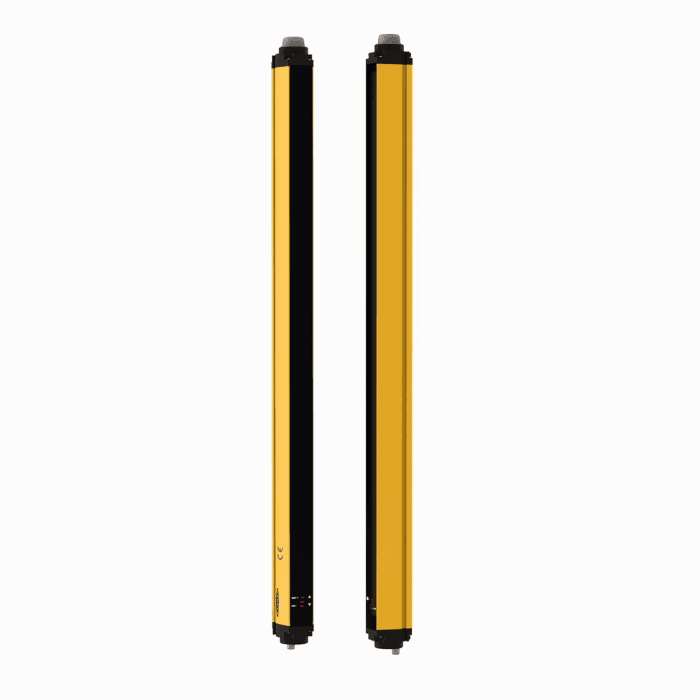

SGSMP3-400Q128
Order ID no. 3803226| In Stock | |
| Price Group | G1 |
| List Price | €1,795.30 |
Item Total€1,795.30
Quantity
- Design
- Rectangular
- Protection class
- IP65
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 55
- Max. range (mm)
- 30000
- Output function
- PNP
- Switching element function
- 2 x OSSD, NO contact
- Function
- Light screen
- Scan field (mm)
- 800
- Optical resolution (mm)
- 400
- Light type
- IR
- With muting function
- Yes
- Number of beams
- 3
- Construction size
- 56.9 x 52 x 906.35 mm
Key Features
- Scan field (mm)
- 800
- Optical resolution (mm)
- 400
- Max. range (mm)
- 30000
- Number of beams
- 3
