PVD225 W/30' | TURCK - Your Global Automation Partner
Pick-to-Light
PVD225 W/30'
Order ID no. 3074765
In Stock
Price Group
F3
List Price
€523.20
home
Home
Loading...
Technical Data
Cable length (m)
9
Design
Rectangular
Protection class
IP62
Electrical connection
Cable
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
50
Max. range (mm)
400
Output function
PNP/NPN
Switching element function
NO/NC
Function
Retroreflective sensor or proximity switch
Scan field (mm)
225
Optical resolution (mm)
28.6
Light type
Red
Operating voltage
DC
Number of beams
8
Construction size

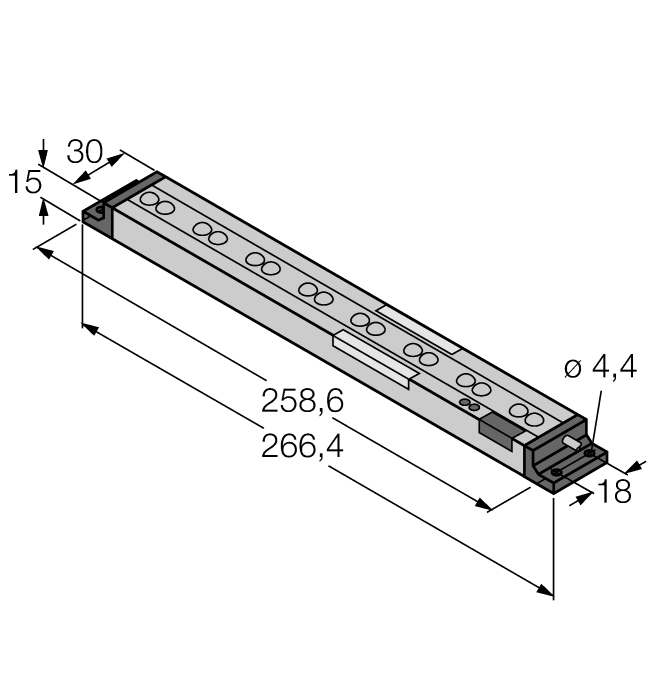

266.4 x 30 x 15 mm
Input type
Bipolar (PNP/NPN)
Number of colors/segments
2
Key Features
Scan field (mm)
225
Light type
Red
Output function
PNP/NPN
Number of colors/segments
2
