PVL500N | TURCK - Your Global Automation Partner
Pick-to-Light
PVL500N
Order ID no. 3032570
home
Home
Loading...
Technical Data
Cable length (m)
2
Design
Rectangular
Protection class
IP50
Electrical connection
Cable
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
50
Max. range (mm)
1500
Output function
NPN
Switching element function
NO contact
Function
Retroreflective Sensor
Scan field (mm)
500
Optical resolution (mm)
70
Light type
Red
Operating voltage
DC
Number of beams
8

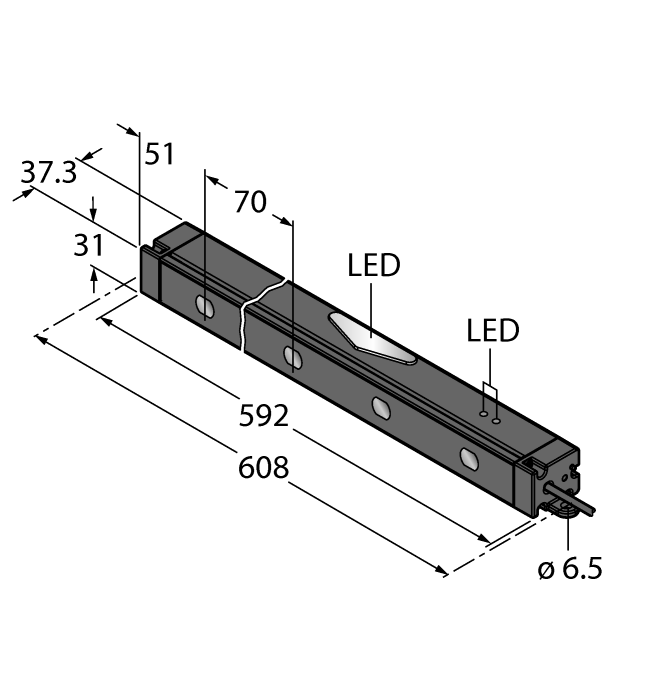

Construction size
608 x 31 x 37.3 mm
Input type
minus‐schaltend
Number of colors/segments
2
Key Features
Scan field (mm)
500
Light type
Red
Output function
NPN
Number of colors/segments
2
In Stock
Price Group
F3
List Price
€517.20
