TBEN-L5-4RFID-8DXP-OPC-UA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

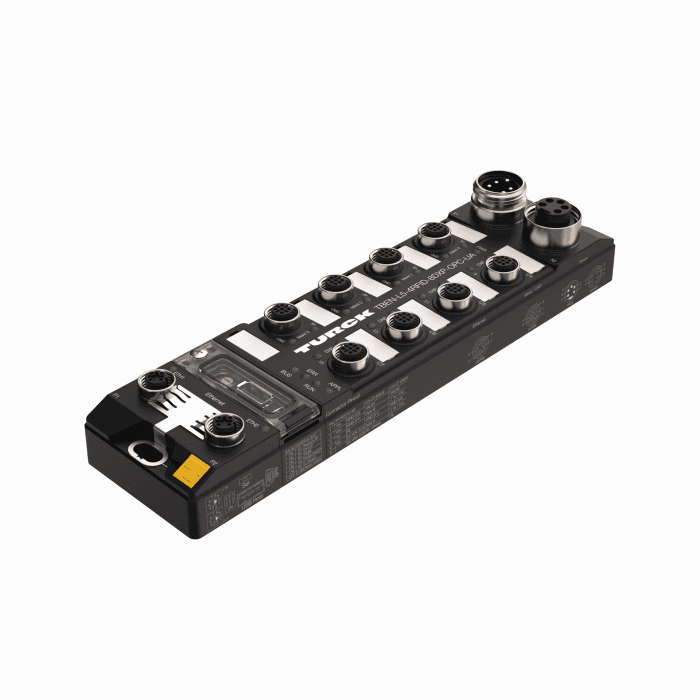

Compact RFID Module for OPC-UA
TBEN-L5-4RFID-8DXP-OPC-UA
Order ID no. 6814126
home
Home
Loading...
Technical Data
Cable length (m)
50
Protection class
IP65, IP67, IP69K
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Network protocol
OPC UA
Approvals
ATEX Zone 2/22, cULus
Number of channels
12
Output voltage
24 VDC from potential group
Signal type
RFID, Digital input, Digital input/output, Digital output
Connection technology signal
M12
Transmission rate Ethernet
10/100 Mbps
Connection technology Ethernet
2 x M12, 4-pin, D-coded
Operating voltage
DC
Installation area
zone 2, zone 22
Key Features
Network protocol
OPC UA
Number of channels
12
Protection class
IP65, IP67, IP69K
In Stock
Price Group
D1
List Price
€1,146.90
