piconet Coupling Module for PROFIBUS-DP

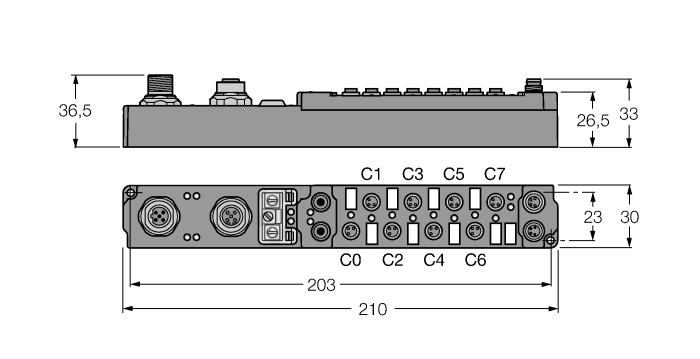

SDPL-0404D-1003
Order ID no. 6824450| In Stock | |
| Price Group | D1 |
| List Price | €439.05 |
Item Total€439.05
Quantity
- Protection class
- IP67
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 55
- Network protocol
- PROFIBUS-DP
- Approvals
- cULus
- Number of channels
- 8
- Output voltage
- 20…29 VDC from load voltage
- Signal type
- Digital output, Digital input, Digital input/output
- Connection technology signal
- M8
- Operating voltage
- DC
Key Features
- Connection technology signal
- M8
- Network protocol
- PROFIBUS-DP
- Protection class
- IP67
- Signal type
- Digital output, Digital input, Digital input/output
