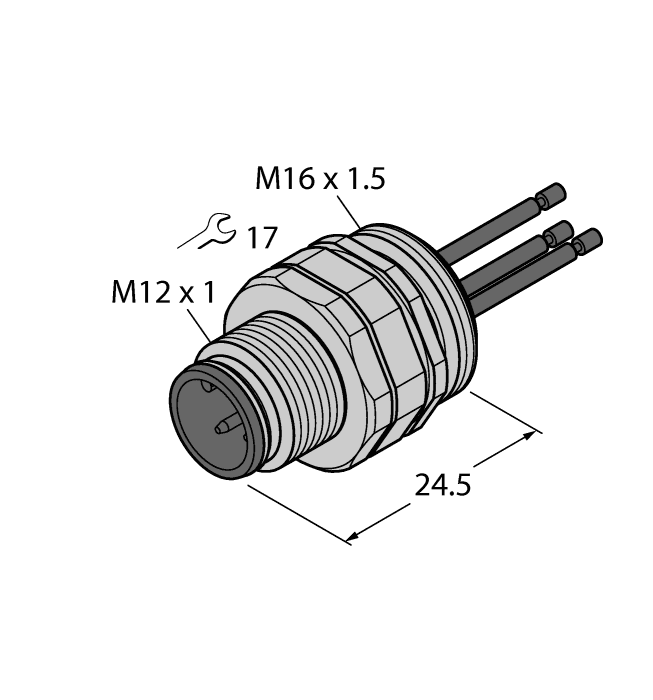

Male Receptacle with Stranded Wires, Front-mounted
EC-FSD4.5-0.5/16
Order ID no. 6934168| In Stock | |
| Price Group | K1 |
| List Price | €19.50 |
Item Total€19.50
Quantity
- Application
- Signal
- Core cross-section (mm²)
- 0.34
- Approvals
- CE
- Connector A
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 5
- Connection mode
- Wire connection
- Screw-in thread
- M16 × 1.5
- Voltage (V)
- 60
- Current (A)
- 4
- Receptacle housing material A
- Brass
Key Features
- Connector A
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 5
- Receptacle housing material A
- Brass
- Screw-in thread
- M16 × 1.5
