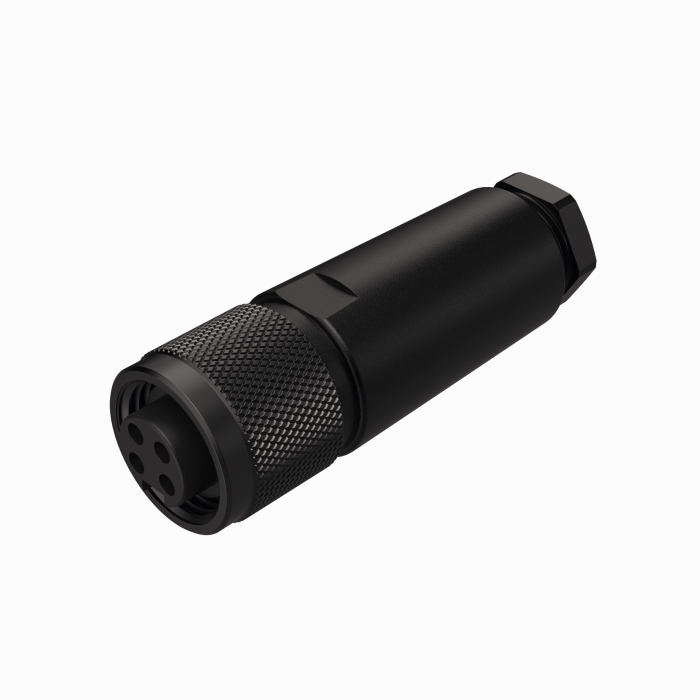

Field-Wireable Connector
FW-MRKPM0416-P-S-1012
Order ID no. 6914509| In Stock | |
| Price Group | K2 |
| List Price | €30.15 |
Item Total€30.15
Quantity
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 90
- Application
- Signal, Power
- Connector A
- Female, 7/8″-16 UN, Straight
- Number of Pins
- 4
- Connection mode
- Screw/clamp connection
- Screw-in thread
- PG13.5
- Voltage (V)
- 250
- Current (A)
- 9
- Coupling nut/screw material A
- Aluminum
Key Features
- Connection mode
- Screw/clamp connection
- Connector A
- Female, 7/8″-16 UN, Straight
- Number of Pins
- 4
- Application
- Signal, Power
