BMSWS8251-8.5 | TURCK - Your Global Automation Partner

BMSWS8251-8.5

BMSWS8251-8.5

Thumbnail for BMSWS8251-8.5

Thumbnail for BMSWS8251-8.5

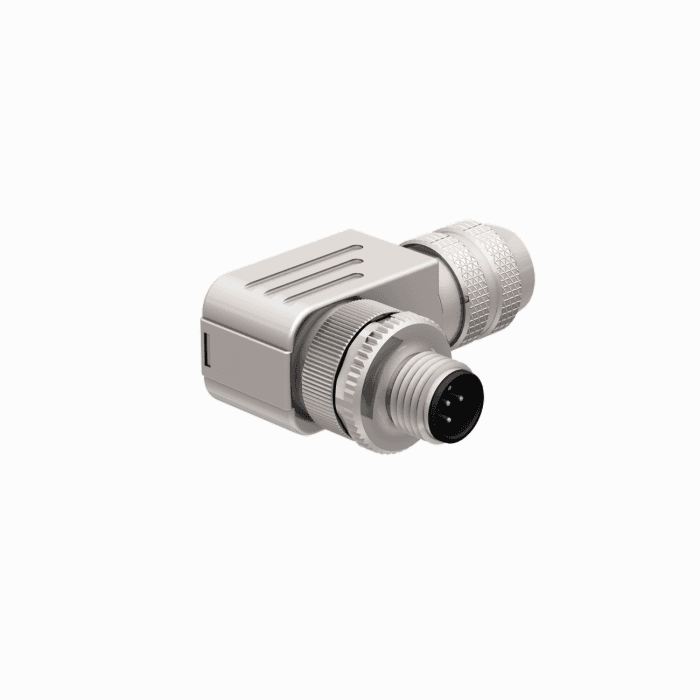

Field-Wireable Connector

BMSWS8251-8.5

Order ID no. 6904724

In Stock
Price Group	K2
List Price	€25.20

homeHome
Loading...

Network protocol: PROFIBUS-DP
Application: Data
Connector A: Male, M12 × 1, Angled, B-coded
Number of pins: 5
Coupling nut/screw material A: Die-cast Zinc
Screw-in thread: M18 × 1
Voltage (V): 125
Current (A): 4
Approvals: cULus recognized
Connection mode: Screw/clamp connection

Key Features

Connection mode: Screw/clamp connection
Connector A: Male, M12 × 1, Angled, B-coded
Number of pins: 5
Application: Data
