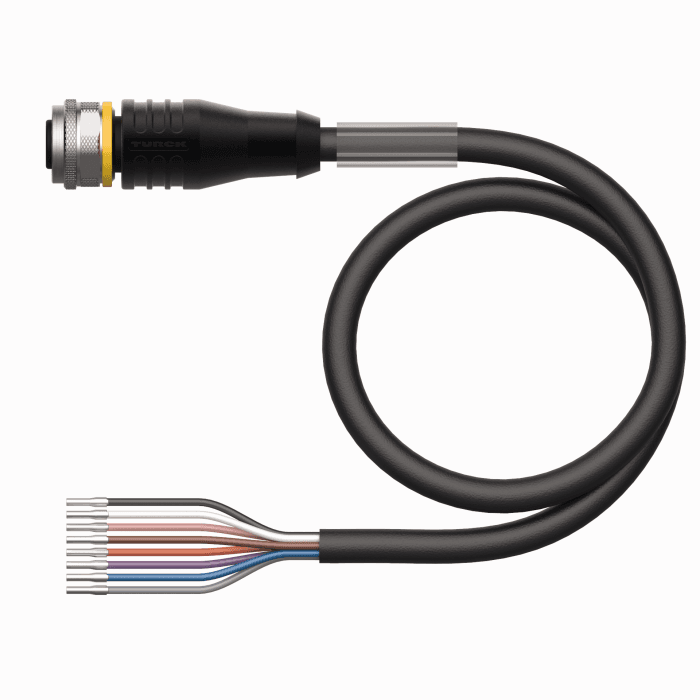

Actuator and Sensor Cable, PUR

RKS8T-50/TXL

Order ID no. 6628957

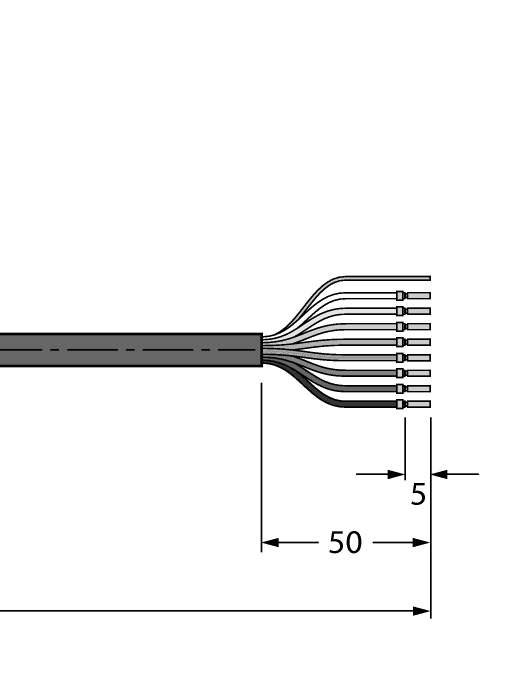

Cable length (m): 50
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Application: Signal
Number of Conductors: 8
Core cross-section (mm²): 0.25
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Connector A: Female, M12 × 1, Straight, A-coded
Number of Pins: 8
Voltage (V): 30
Current (A): 2
Coupling nut/screw material A: Brass
Design: Connection Cable
