PSWS4M-PSWS4M-4416-0.4M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Industrial Ethernet/PROFINET Cable
PSWS4M-PSWS4M-4416-0.4M
Order ID no. 100004701
home
Home
Loading...
Technical Data
Application
Data
Network protocol
Ethernet
Design
Extension Cable
Number of pins
4

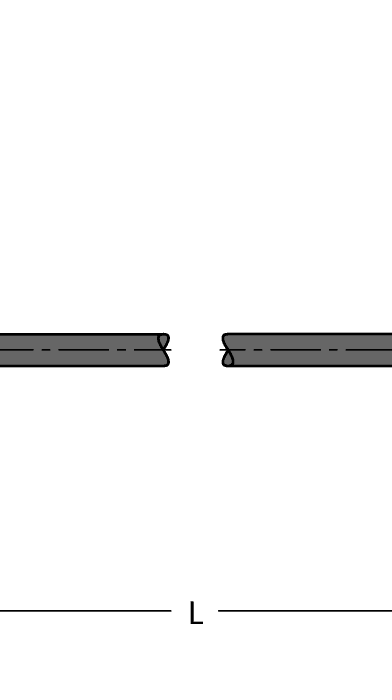

Cable length (m)
0.4
Cable quality
PUR
Number of Pins
4
Approvals
UL Listed
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
60
Number of Conductors
4
Core cross-section (mm²)
0.32
Cable color
Green

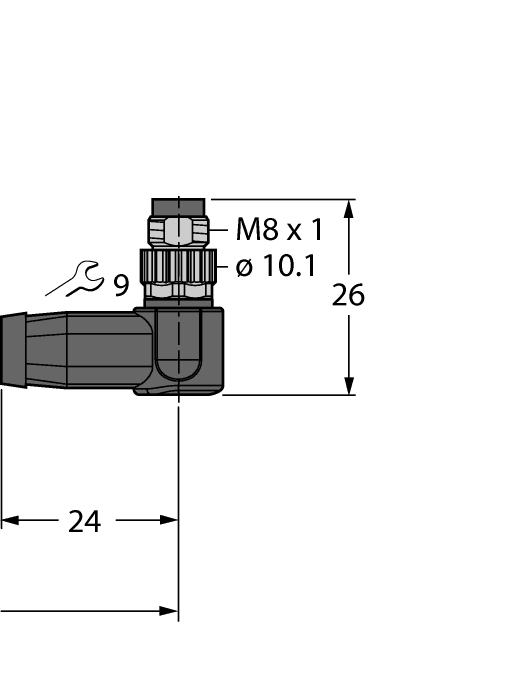

Connector A
Male, M8 × 1, Angled
Voltage (V)
30
Current (A)
3
Coupling nut/screw material A
Zinc
Coupling nut/screw material B
Die-cast Zinc

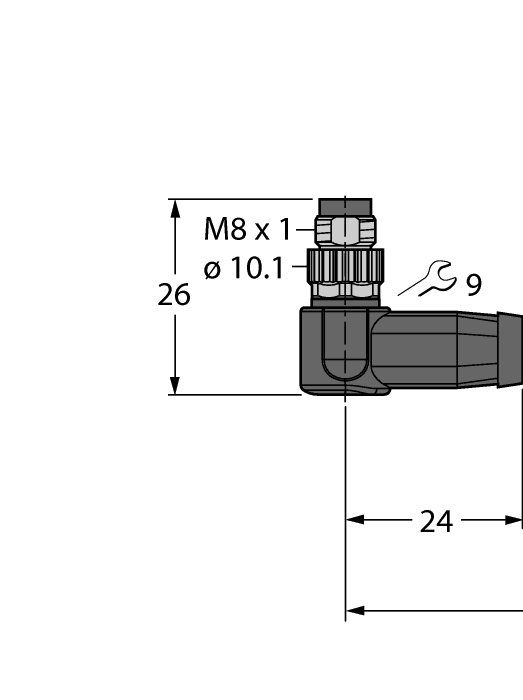

Connector B
Male, M8 × 1, Angled
Key Features
Cable length (m)
0.4
Cable quality
PUR
Connector A
Male, M8 × 1, Angled
Connector B
Male, M8 × 1, Angled
home
Turck-Shop
Connectivity
Cordsets
PSWS4M-PSWS4M-4416-0.4M
In Stock
Price Group
K2
List Price
€24.90
Item Total
€249.00
Quantity
−
+
