PROFIBUS Cable
RSSW-D9-RKSW-451-2M-2M
Order ID no. 6914127
home
Home
Loading...
Technical Data
Cable length (m)
2
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Application
Data
Number of Conductors
2
Core cross-section (mm²)
0.34
Network protocol
PROFIBUS-DP
Cable quality
PUR
Cable color
Violet
Approvals
UL

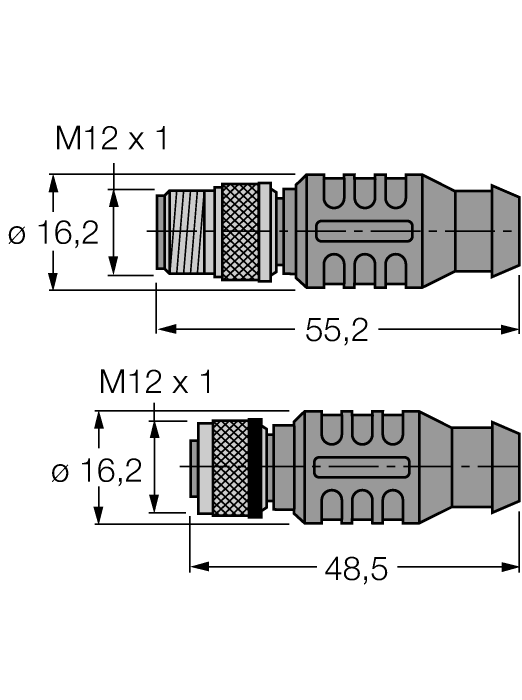

Connector A
Male/Female, M12 × 1, Straight, B-coded
Number of Pins
5
Voltage (V)
250
Current (A)
4
Coupling nut/screw material A
Brass

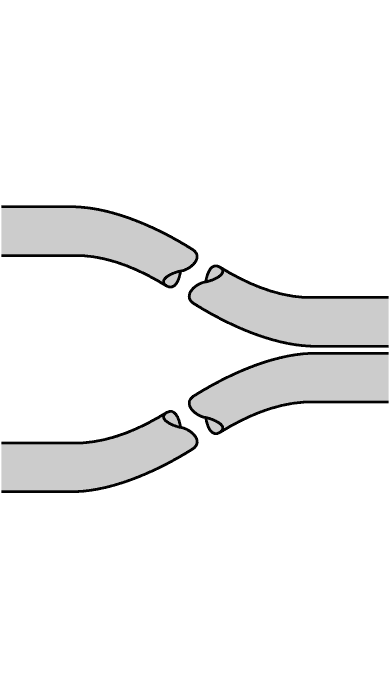

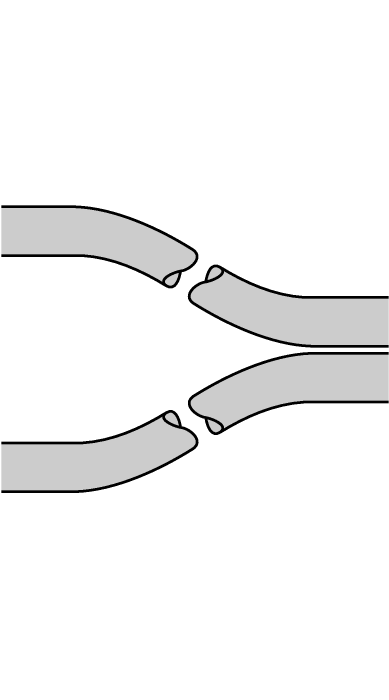

Design
Y-splitter with cable

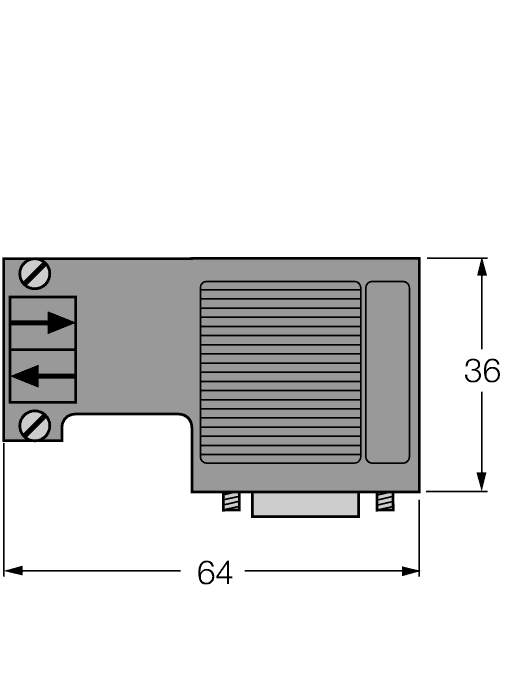

Connector B
Male, D-Sub, Angled
Number of Pins
9
Key Features
Application
Data
Connector A
Male/Female, M12 × 1, Straight, B-coded
Connector B
Male, D-Sub, Angled
In Stock
Price Group
K1
List Price
€123.20
